Name: FDMT800100DC
Brand: onsemi
SKU: FDMT800100DC
Price: 8.81 USD
Availability: InStock

REF: FDMT800100DC onsemi

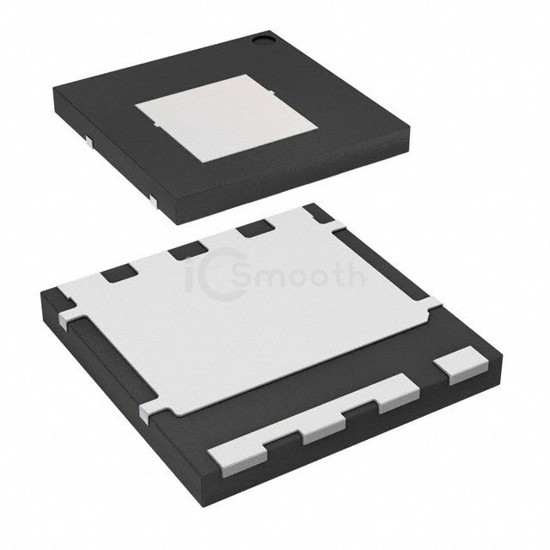

FDMT800100DC

MOSFET N-CH 100V 24A/162A 8DUAL

FDMT800100DC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 24A/162A 8DUAL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 1,669

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	24A (Ta), 162A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	2.95mOhm @ 24A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	111 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7835 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta), 156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-Dual Cool™88
Package / Case	8-PowerVDFN
