Name: FDMS86550ET60
Brand: onsemi
SKU: FDMS86550ET60
Price: 7.81 USD
Availability: InStock

REF: FDMS86550ET60 onsemi

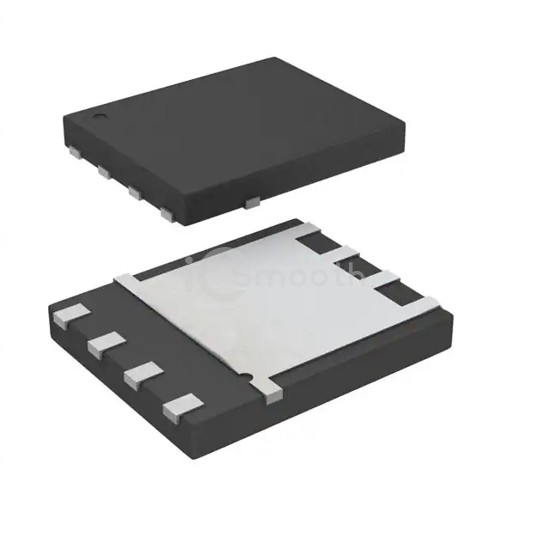

FDMS86550ET60

MOSFET N-CH 60V 32A/245A POWER56

FDMS86550ET60 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 32A/245A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,580

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	32A (Ta), 245A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	1.65mOhm @ 32A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	154 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8235 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 187W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerTDFN
