FDMS86550

In Stock: 4,594

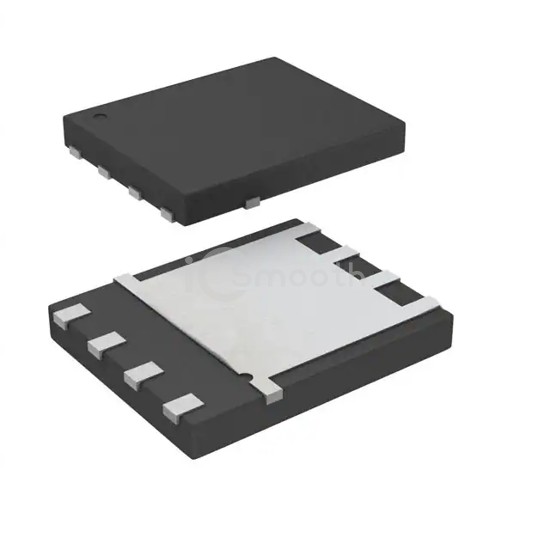

FDMS86550 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMS86550 onsemi
FDMS86550

onsemi

MOSFET N-CH 60V 32A/155A POWER56

FDMS86550 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 32A/155A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,594

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C32A (Ta), 155A (Tc)
Drive Voltage (Max Rds On, Min Rds On)8V, 10V
Rds On (Max) @ Id, Vgs1.65mOhm @ 32A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs154 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11530 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.7W (Ta), 156W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerTDFN
