FDMS86300DC

In Stock: 6,959

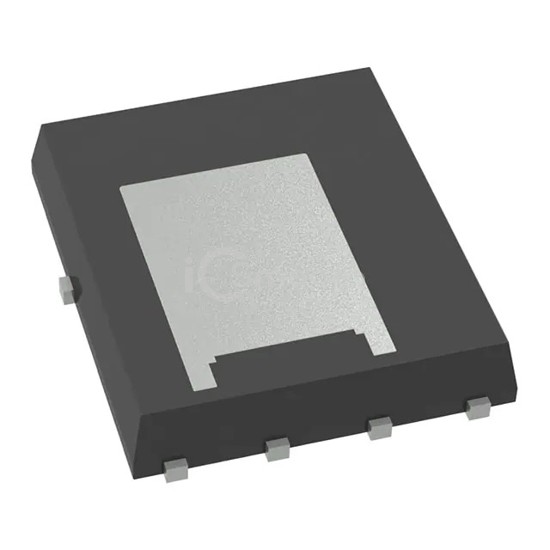

FDMS86300DC - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMS86300DC onsemi
FDMS86300DC

onsemi

MOSFET N-CH 80V 24A/76A DLCOOL56

FDMS86300DC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 24A/76A DLCOOL56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 6,959

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C24A (Ta), 76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)8V, 10V
Rds On (Max) @ Id, Vgs3.1mOhm @ 24A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs101 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7005 pF @ 40 V
FET Feature-
Power Dissipation (Max)3.2W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerTDFN
