Name: FDMS86202ET120
Brand: onsemi
SKU: FDMS86202ET120
Price: 6.61 USD
Availability: InStock

REF: FDMS86202ET120 onsemi

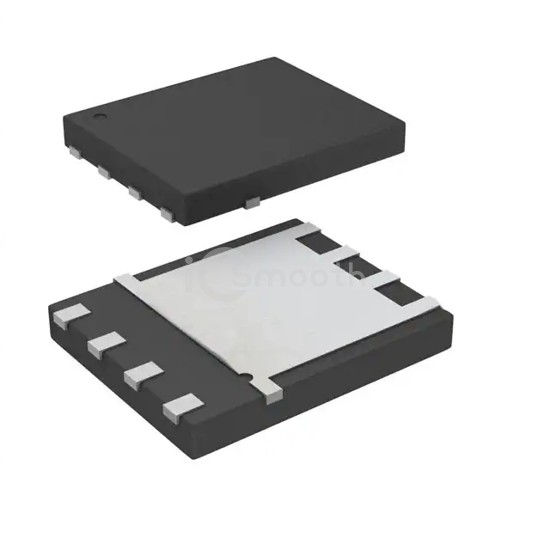

FDMS86202ET120

MOSFET N-CH 120V 13.5/102A PWR56

FDMS86202ET120 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 120V 13.5/102A PWR56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,427

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	120 V
Current - Continuous Drain (Id) @ 25°C	13.5A (Ta), 102A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	7.2mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	64 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4585 pF @ 60 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 187W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerTDFN
