FDMS86202

In Stock: 1,019
FDMS86202 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMS86202 onsemi
FDMS86202

onsemi

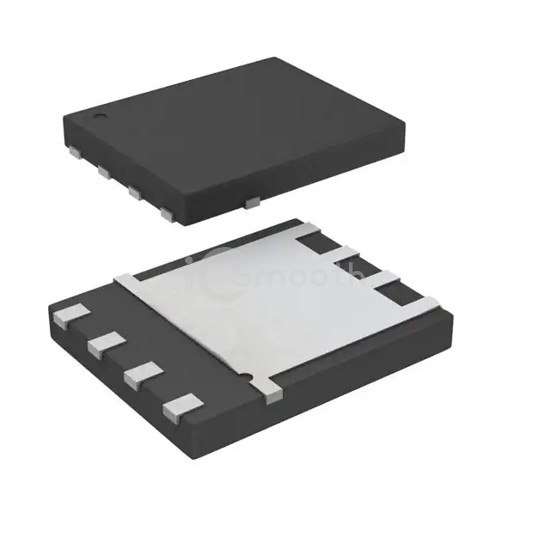

MOSFET N-CH 120V 13.5A POWER56

FDMS86202 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 120V 13.5A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 1,019

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)120 V
Current - Continuous Drain (Id) @ 25°C13.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs7.2mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs64 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4250 pF @ 60 V
FET Feature-
Power Dissipation (Max)2.7W (Ta), 156W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerTDFN
