FDMS86180

In Stock: 2,349

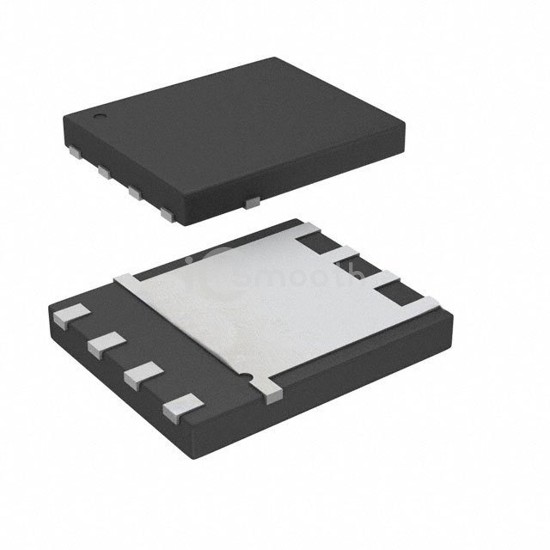

FDMS86180 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMS86180 onsemi
FDMS86180

onsemi

MOSFET N-CH 100V 151A POWER56

FDMS86180 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 151A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,349

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C151A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs3.2mOhm @ 67A, 10V
Vgs(th) (Max) @ Id4V @ 370µA
Gate Charge (Qg) (Max) @ Vgs54 nC @ 6 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6215 pF @ 50 V
FET Feature-
Power Dissipation (Max)138W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower56
Package / Case8-PowerTDFN
