FDMS8320LDC

In Stock: 2,395

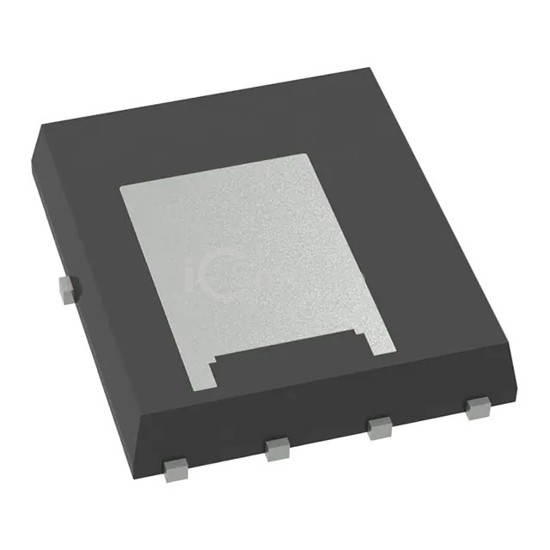

FDMS8320LDC - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMS8320LDC onsemi
FDMS8320LDC

onsemi

MOSFET N-CH 40V 44A DLCOOL56

FDMS8320LDC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 44A DLCOOL56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,395

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C44A (Ta), 130A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.1mOhm @ 44A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs170 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11635 pF @ 20 V
FET Feature-
Power Dissipation (Max)3.2W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerTDFN
