FDMS8320L

In Stock: 1,653

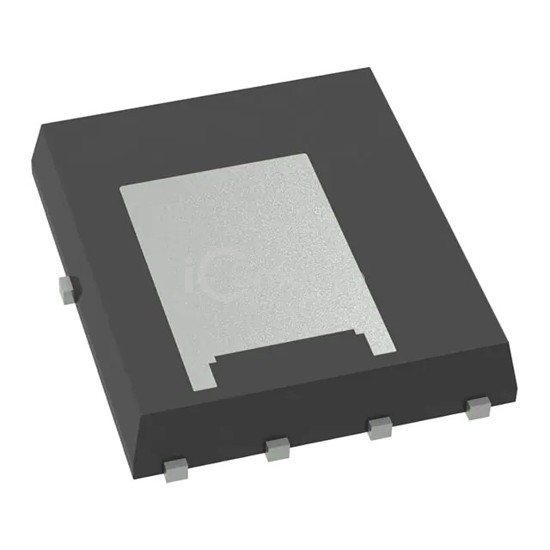

FDMS8320L - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMS8320L onsemi
FDMS8320L

onsemi

MOSFET N-CH 40V 36A/100A 8PQFN

FDMS8320L is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 36A/100A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 1,653

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C36A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.1mOhm @ 32A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs170 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11110 pF @ 20 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 104W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerTDFN
