Name: FDMS8050ET30
Brand: onsemi
SKU: FDMS8050ET30
Price: 4.29 USD
Availability: InStock

REF: FDMS8050ET30 onsemi

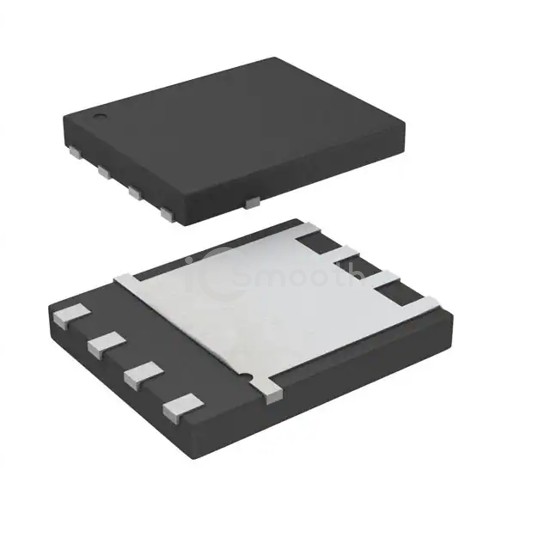

FDMS8050ET30

MOSFET N-CH 30V 55A/423A POWER56

FDMS8050ET30 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 55A/423A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,515

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	55A (Ta), 423A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.65mOhm @ 55A, 10V
Vgs(th) (Max) @ Id	3V @ 750µA
Gate Charge (Qg) (Max) @ Vgs	285 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	22610 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 180W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerTDFN
