FDMS7650DC

In Stock: 1,166

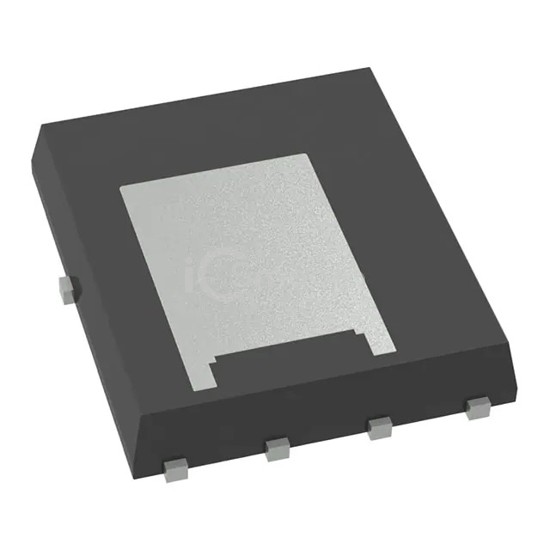

FDMS7650DC - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMS7650DC onsemi
FDMS7650DC

onsemi

MOSFET N-CH 30V 47A POWER56

FDMS7650DC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 47A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 1,166

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C47A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.99mOhm @ 36A, 10V
Vgs(th) (Max) @ Id2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs206 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds14765 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.3W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerTDFN
