Name: FDMS3016DC
Brand: onsemi
SKU: FDMS3016DC
Availability: InStock

REF: FDMS3016DC onsemi

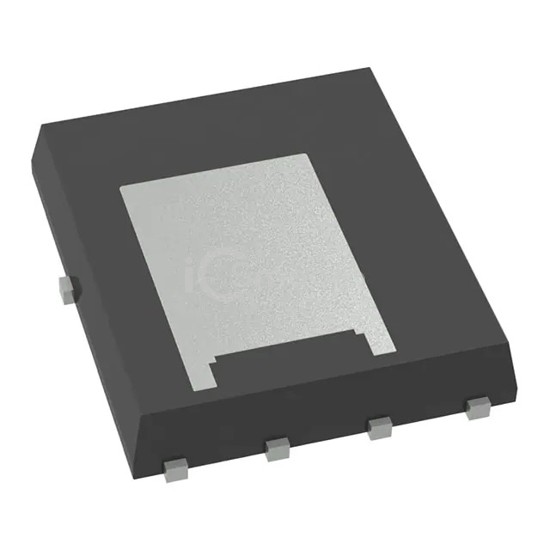

FDMS3016DC

MOSFET N-CH 30V 18A/49A DLCOOL56

FDMS3016DC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 18A/49A DLCOOL56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 1,513

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	18A (Ta), 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1385 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 60W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerTDFN
