FDMS2672

In Stock: 5,728

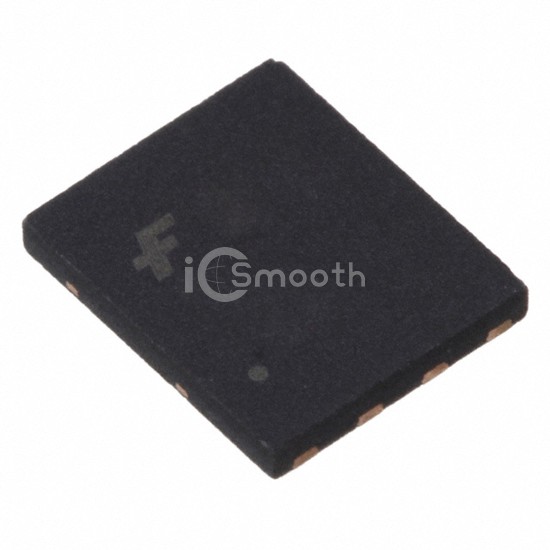

FDMS2672 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMS2672 onsemi
FDMS2672

onsemi

MOSFET N-CH 200V 3.7A/20A 8MLP

FDMS2672 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 200V 3.7A/20A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 5,728

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C3.7A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs77mOhm @ 3.7A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs42 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2315 pF @ 100 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 78W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (5x6), Power56
Package / Case8-PowerWDFN
