Name: FDME905PT
Brand: onsemi
SKU: FDME905PT
Price: 0.92 USD
Availability: InStock

REF: FDME905PT onsemi

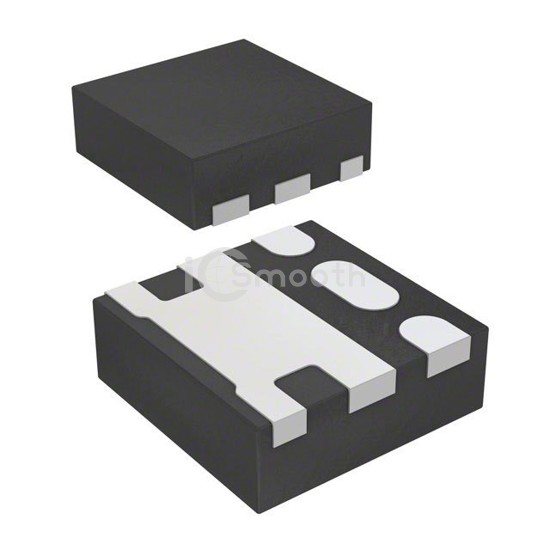

FDME905PT

MOSFET P-CH 12V 8A MICROFET

FDME905PT is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 8A MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 4,998

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	22mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2315 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MicroFet 1.6x1.6 Thin
Package / Case	6-PowerUFDFN
