FDME820NZT

In Stock: 9,992

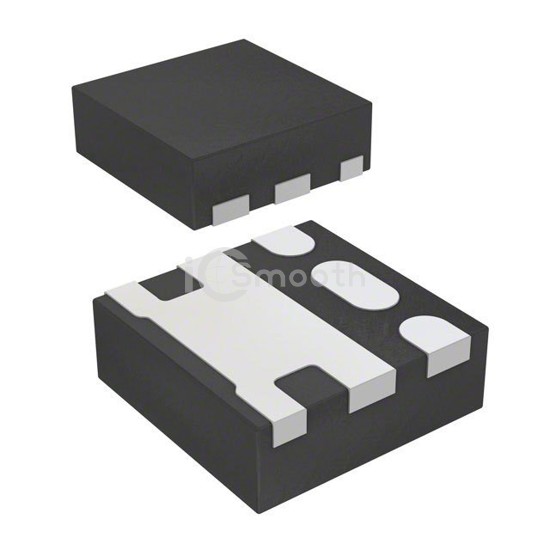

FDME820NZT - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDME820NZT onsemi
FDME820NZT

onsemi

MOSFET N-CH 20V 9A MICROFET

FDME820NZT is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 9A MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 9,992

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs18mOhm @ 9A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.5 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds865 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMicroFet 1.6x1.6 Thin
Package / Case6-PowerUFDFN
