Name: FDME410NZT
Brand: onsemi
SKU: FDME410NZT
Availability: InStock

REF: FDME410NZT onsemi

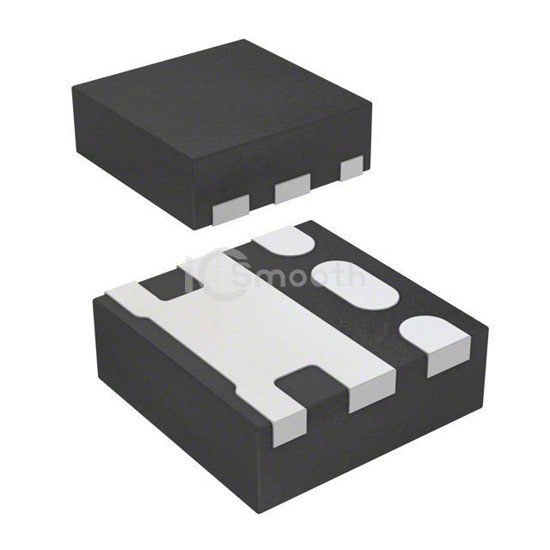

FDME410NZT

MOSFET N-CH 20V 7A MICROFET

FDME410NZT is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 7A MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 6,332

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	26mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1025 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MicroFet 1.6x1.6 Thin
Package / Case	6-PowerUFDFN
