Name: FDMC8884-F126
Brand: onsemi
SKU: FDMC8884-F126
Availability: InStock

REF: FDMC8884-F126 onsemi

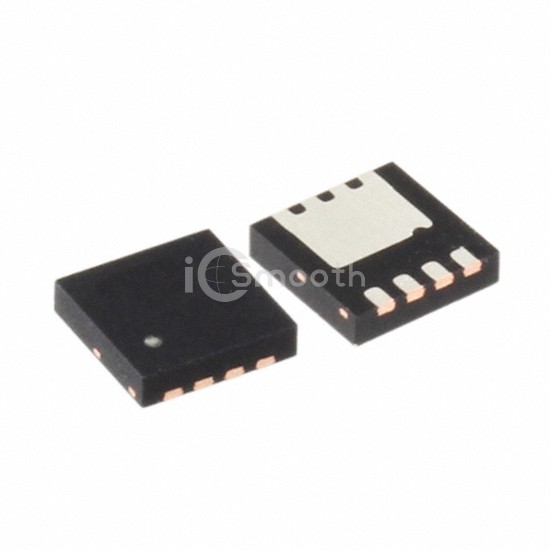

FDMC8884-F126

MOSFET N-CH 30V 9A/15A 8MLP

FDMC8884-F126 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 9A/15A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 1,508

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	9A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	19mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	685 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 18W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (3.3x3.3)
Package / Case	8-PowerWDFN
