FDMC86520L

In Stock: 9,281

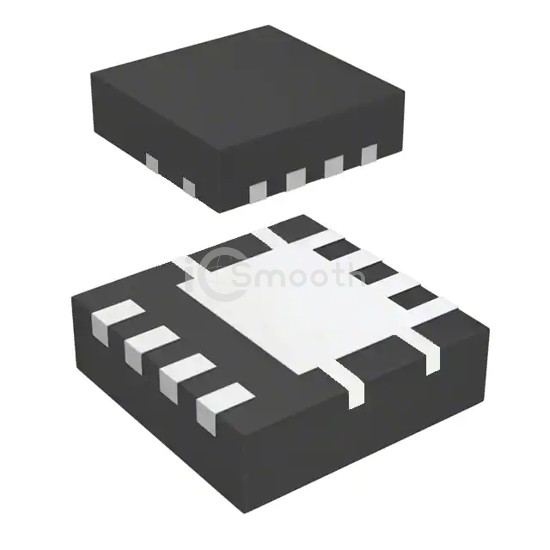

FDMC86520L - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC86520L onsemi
FDMC86520L

onsemi

MOSFET N-CH 60V 13.5A/22A 8MLP

FDMC86520L is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 13.5A/22A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 9,281

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C13.5A (Ta), 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.9mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs64 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4550 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 40W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
