FDMC86261P

In Stock: 5,018

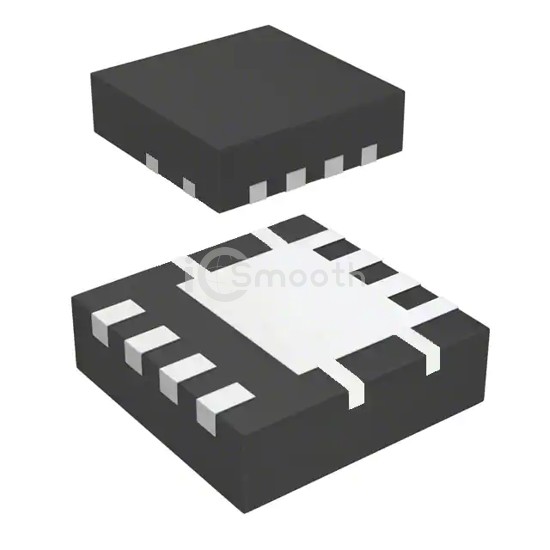

FDMC86261P - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC86261P onsemi
FDMC86261P

onsemi

MOSFET P-CH 150V 2.7A/9A 8MLP

FDMC86261P is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 150V 2.7A/9A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 5,018

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C2.7A (Ta), 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs160mOhm @ 2.4A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1360 pF @ 75 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 40W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
