Name: FDMC86260ET150
Brand: onsemi
SKU: FDMC86260ET150
Price: 1.12 USD
Availability: InStock

REF: FDMC86260ET150 onsemi

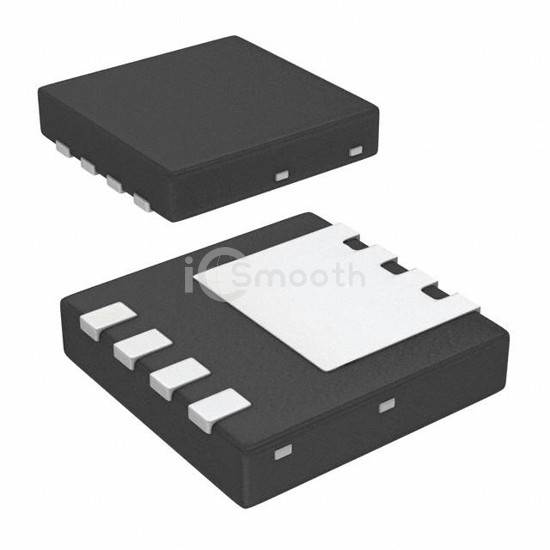

FDMC86260ET150

MOSFET N-CH 150V 5.4A/25A PWR33

FDMC86260ET150 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 150V 5.4A/25A PWR33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 6,340

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	5.4A (Ta), 25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	34mOhm @ 5.4A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1330 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta), 65W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Power33
Package / Case	8-PowerWDFN
