FDMC86102L

In Stock: 6,795

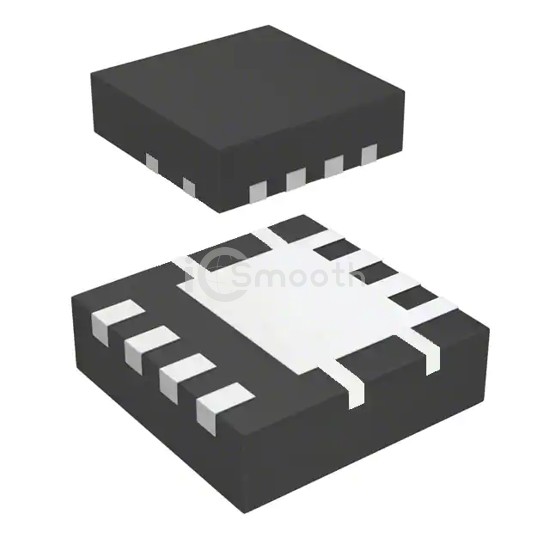

FDMC86102L - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC86102L onsemi
FDMC86102L

onsemi

MOSFET N-CH 100V 7A/18A 8MLP

FDMC86102L is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 7A/18A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 6,795

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C7A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs23mOhm @ 7A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs22 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1330 pF @ 50 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 41W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
