FDMC8588

In Stock: 9,000

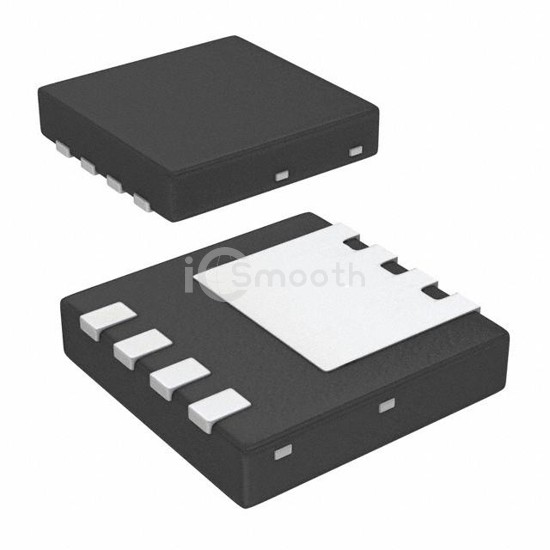

FDMC8588 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC8588 onsemi
FDMC8588

onsemi

MOSFET N-CH 25V 16.5A/40A PWR33

FDMC8588 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 16.5A/40A PWR33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 9,000

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C16.5A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5mOhm @ 17A, 10V
Vgs(th) (Max) @ Id1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1228 pF @ 13 V
FET Feature-
Power Dissipation (Max)2.4W (Ta), 26W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower33
Package / Case8-PowerTDFN
