FDMC8554

In Stock: 9,974

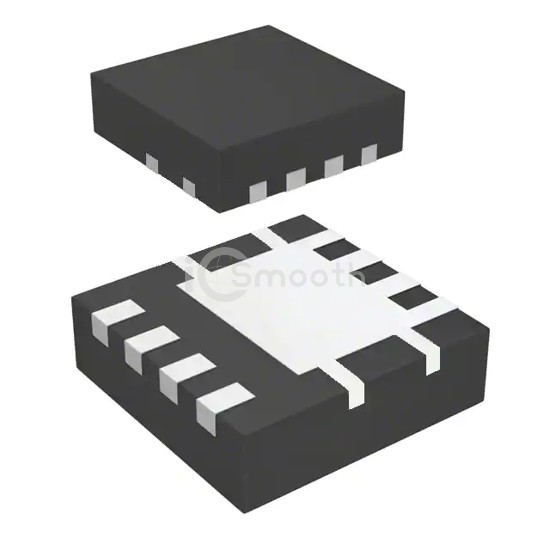

FDMC8554 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC8554 onsemi
FDMC8554

onsemi

MOSFET N-CH 20V 16.5A 8MLP

FDMC8554 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 16.5A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 9,974

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C16.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs62 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3380 pF @ 10 V
FET Feature-
Power Dissipation (Max)2W (Ta), 41W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
