FDMC8010ET30

In Stock: 5,031

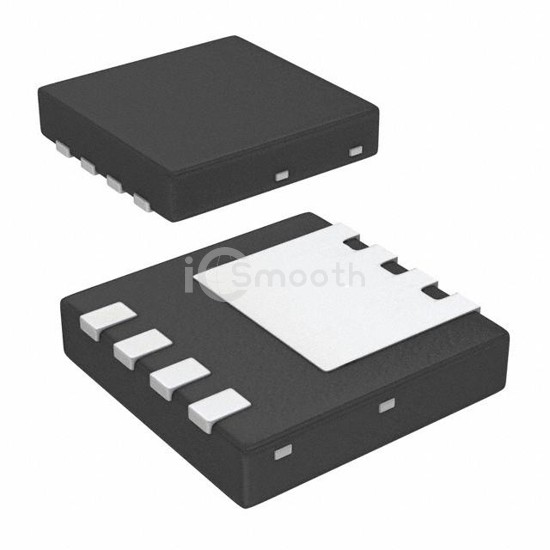

FDMC8010ET30 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC8010ET30 onsemi
FDMC8010ET30

onsemi

MOSFET N-CH 30V 30A/174A POWER33

FDMC8010ET30 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 30A/174A POWER33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 5,031

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C30A (Ta), 174A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.3mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs94 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5860 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 65W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower33
Package / Case8-PowerWDFN
