FDMC5614P

In Stock: 9,705

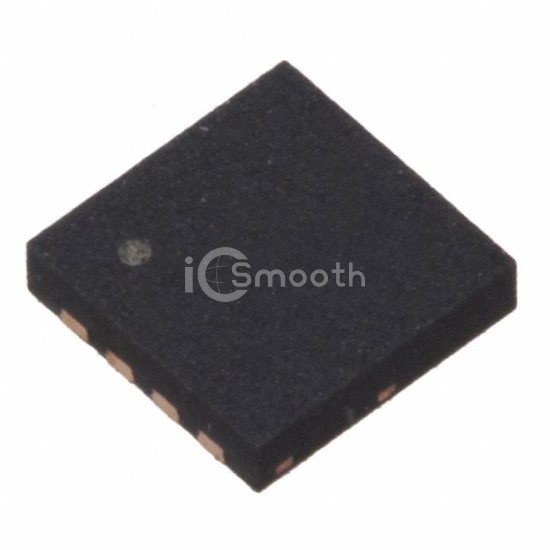

FDMC5614P - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC5614P onsemi
FDMC5614P

onsemi

MOSFET P-CH 60V 5.7A/13.5A 8MLP

FDMC5614P is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 60V 5.7A/13.5A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 9,705

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C5.7A (Ta), 13.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs100mOhm @ 5.7A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1055 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.1W (Ta), 42W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
