Name: FDMC510P-F106
Brand: onsemi
SKU: FDMC510P-F106
Availability: InStock

REF: FDMC510P-F106 onsemi

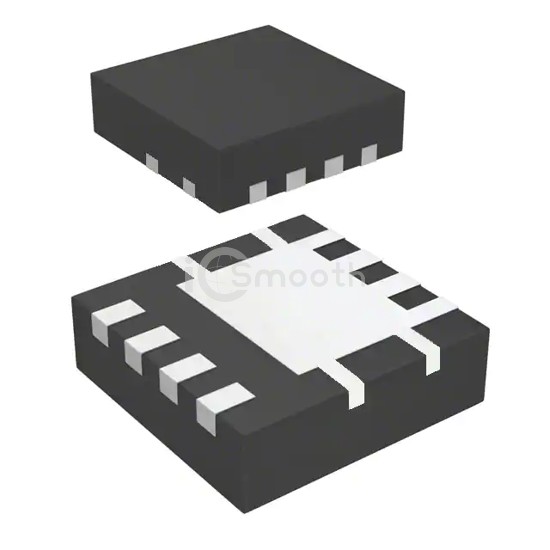

FDMC510P-F106

MOSFET P-CH 20V 12A/18A 8WDFN

FDMC510P-F106 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 12A/18A 8WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 6,557

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	8mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	116 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	7860 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 41W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WDFN (3.3x3.3)
Package / Case	8-PowerWDFN
