FDMC510P

In Stock: 38

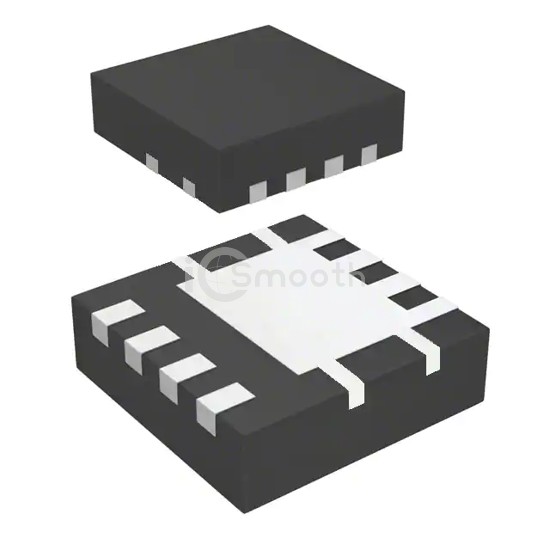

FDMC510P - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC510P onsemi
FDMC510P

onsemi

MOSFET P-CH 20V 12A/18A 8MLP

FDMC510P is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 12A/18A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 38

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C12A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs8mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs116 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds7860 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 41W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
