Name: FDMC4D9P20X8
Brand: onsemi
SKU: FDMC4D9P20X8
Price: 0.53 USD
Availability: InStock

REF: FDMC4D9P20X8 onsemi

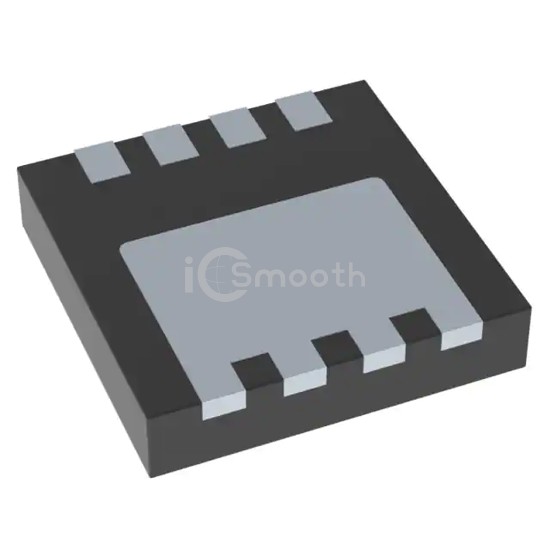

FDMC4D9P20X8

MOSFET P-CH 20V 18A/75A 8PQFN

FDMC4D9P20X8 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 18A/75A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 8,048

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	18A (Ta), 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	4.9mOhm @ 18A, 4.5V
Vgs(th) (Max) @ Id	1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	109 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	10550 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta), 40W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
