Name: FDMC4435BZ-F126
Brand: onsemi
SKU: FDMC4435BZ-F126
Availability: InStock

REF: FDMC4435BZ-F126 onsemi

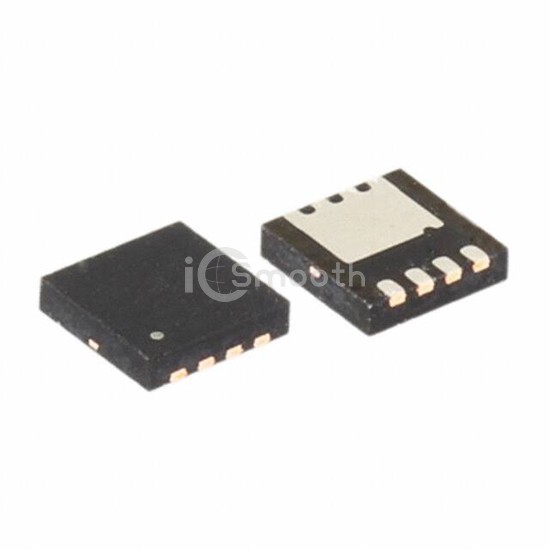

FDMC4435BZ-F126

MOSFET P-CH 30V 8.5A/18A 8MLP

FDMC4435BZ-F126 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 30V 8.5A/18A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 7,133

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	8.5A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	20mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	46 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	2045 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (3.3x3.3)
Package / Case	8-PowerWDFN
