Name: FDMC3612-L701
Brand: onsemi
SKU: FDMC3612-L701
Price: 1.02 USD
Availability: InStock

REF: FDMC3612-L701 onsemi

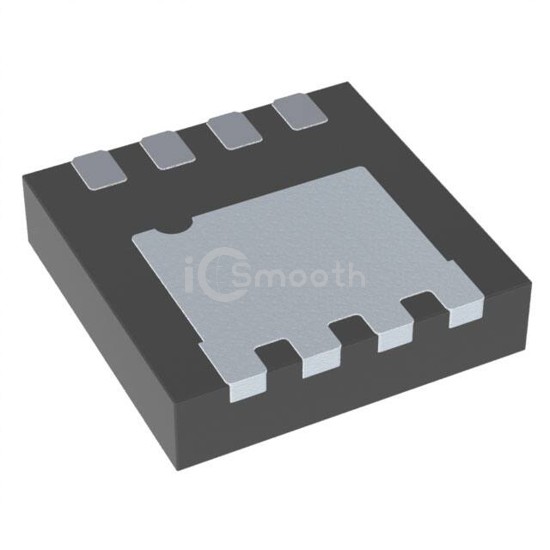

FDMC3612-L701

POWER TRENCH MOSFET N-CHANNEL 10

FDMC3612-L701 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER TRENCH MOSFET N-CHANNEL 10. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 3,577

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	3.3A (Ta), 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	110mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	880 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 35W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WDFN (3.3x3.3)
Package / Case	8-PowerWDFN
