FDMC3020DC

In Stock: 9,209

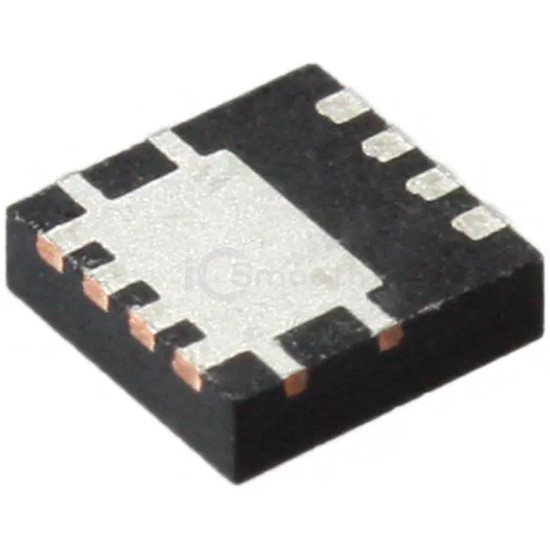

FDMC3020DC - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC3020DC onsemi
FDMC3020DC

onsemi

MOSFET N-CH 30V 17A/40A DLCOOL33

FDMC3020DC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 17A/40A DLCOOL33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 9,209

Specifications

17 parameters
Product StatusLast Time Buy
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C17A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6.25mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1385 pF @ 15 V
FET Feature-
Power Dissipation (Max)3W (Ta), 50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDual Cool ™ 33
Package / Case8-PowerTDFN
