Name: FDMC2514SDC
Brand: onsemi
SKU: FDMC2514SDC
Availability: InStock

REF: FDMC2514SDC onsemi

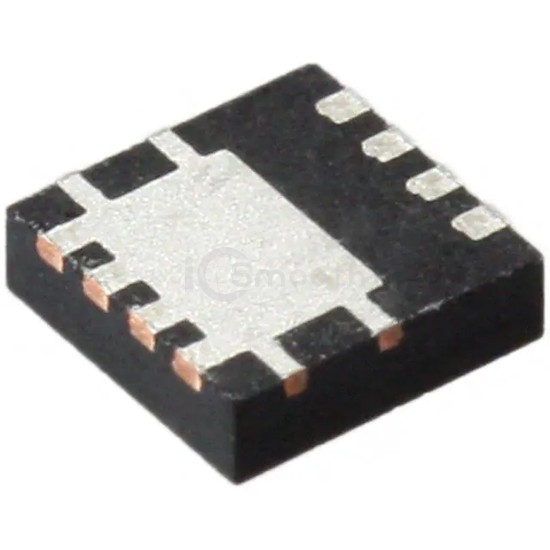

FDMC2514SDC

MOSFET N-CH 25V 24A/40A DLCOOL33

FDMC2514SDC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 24A/40A DLCOOL33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 3,956

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	24A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.5mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	44 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2705 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 60W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Dual Cool ™ 33
Package / Case	8-PowerTDFN
