FDMC010N08C

In Stock: 9,982

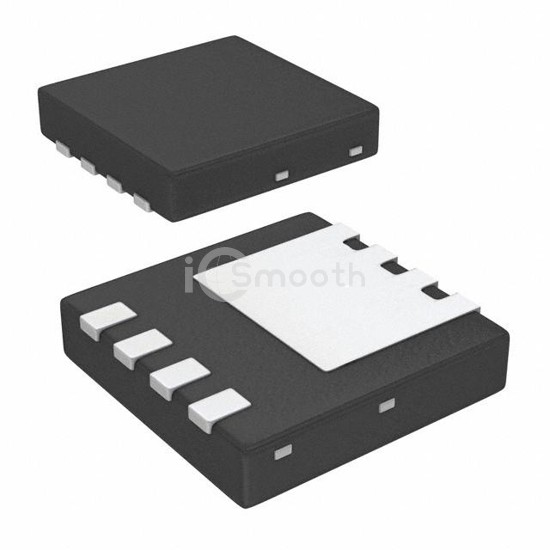

FDMC010N08C - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMC010N08C onsemi
FDMC010N08C

onsemi

MOSFET N-CH 80V 11A/51A POWER33

FDMC010N08C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 11A/51A POWER33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 9,982

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C11A (Ta), 51A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs10mOhm @ 16A, 10V
Vgs(th) (Max) @ Id4V @ 90µA
Gate Charge (Qg) (Max) @ Vgs22 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1500 pF @ 40 V
FET Feature-
Power Dissipation (Max)2.4W (Ta), 52W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower33
Package / Case8-PowerWDFN
