Name: FDMA86251
Brand: onsemi
SKU: FDMA86251
Price: 1.02 USD
Availability: InStock

REF: FDMA86251 onsemi

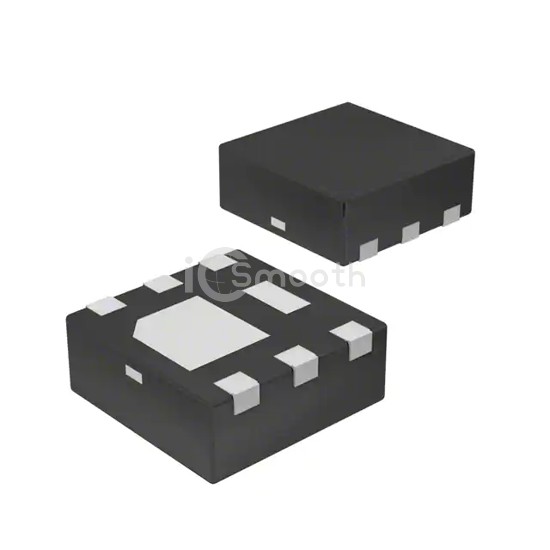

FDMA86251

MOSFET N-CH 150V 2.4A 6MICROFET

FDMA86251 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 150V 2.4A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,397

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	175mOhm @ 2.4A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.8 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	363 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-MicroFET (2x2)
Package / Case	6-WDFN Exposed Pad
