FDMA7630

In Stock: 1,087

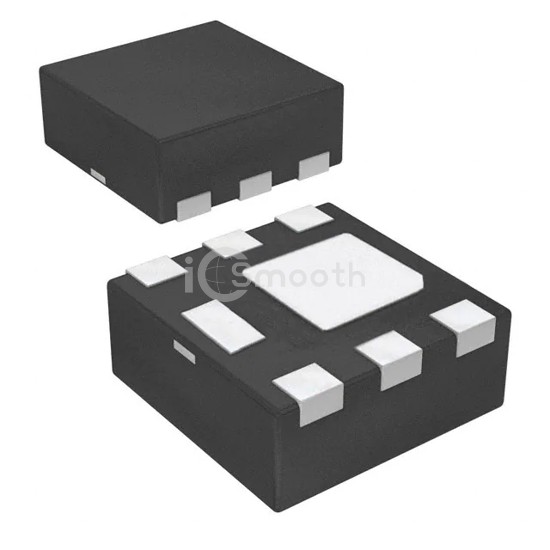

FDMA7630 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMA7630 onsemi
FDMA7630

onsemi

MOSFET N-CH 30V 11A 6MICROFET

FDMA7630 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 11A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,087

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs13mOhm @ 11A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs22 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1360 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.4W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-MicroFET (2x2)
Package / Case6-WDFN Exposed Pad
