Name: FDMA6676PZ
Brand: onsemi
SKU: FDMA6676PZ
Availability: InStock

REF: FDMA6676PZ onsemi

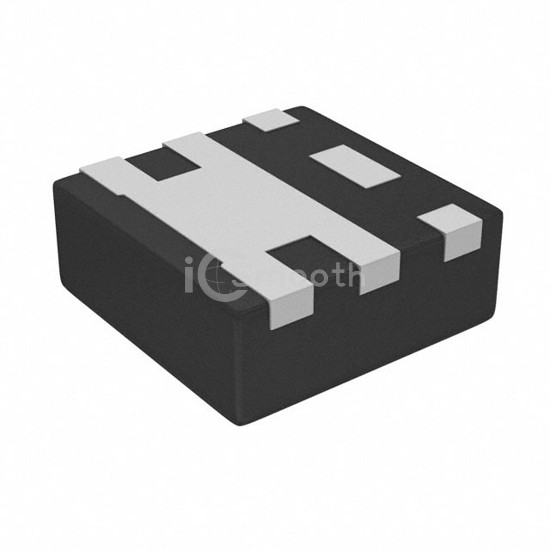

FDMA6676PZ

MOSFET P-CH 30V 11A 6MICROFET

FDMA6676PZ is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 30V 11A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerWDFN.

Datasheet Request a Quote

In Stock: 7,197

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	13.5mOhm @ 11A, 10V
Vgs(th) (Max) @ Id	2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	46 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	2160 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-MicroFET (2x2)
Package / Case	6-PowerWDFN
