FDMA530PZ

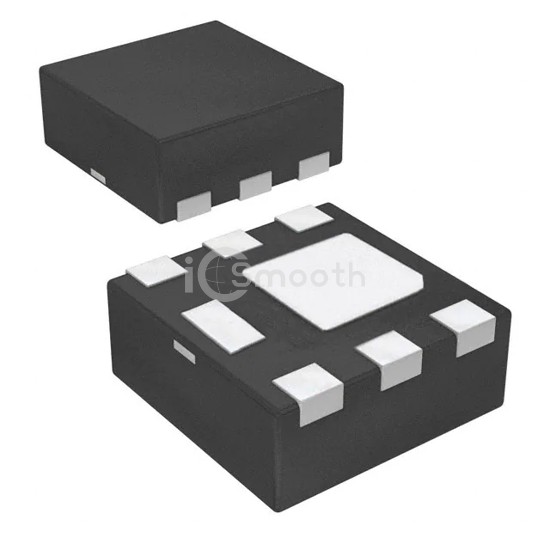

MOSFET P-CH 30V 6.8A 6MICROFET

FDMA530PZ is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 30V 6.8A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,863

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	35mOhm @ 6.8A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1070 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-MicroFET (2x2)
Package / Case	6-WDFN Exposed Pad
