FDMA430NZ

In Stock: 1,269

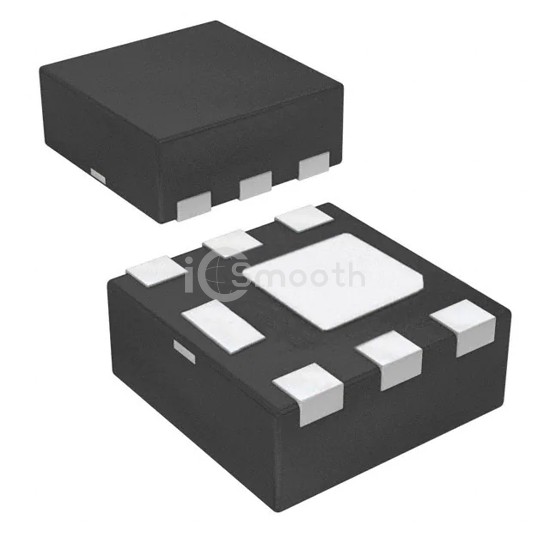

FDMA430NZ - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMA430NZ onsemi
FDMA430NZ

onsemi

MOSFET N-CH 30V 5A 6MICROFET

FDMA430NZ is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 5A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,269

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs40mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds800 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.4W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-MicroFET (2x2)
Package / Case6-WDFN Exposed Pad
