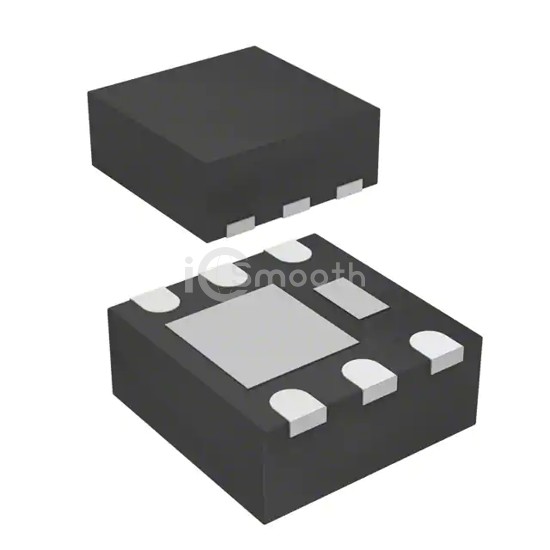

FDMA410NZT

MOSFET N-CH 20V 9.5A 6MICROFET

FDMA410NZT is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 9.5A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,958

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	9.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	23mOhm @ 9.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1310 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (2.05x2.05)
Package / Case	6-UDFN Exposed Pad
