Name: FDM6296
Brand: onsemi
SKU: FDM6296
Availability: InStock

REF: FDM6296 onsemi

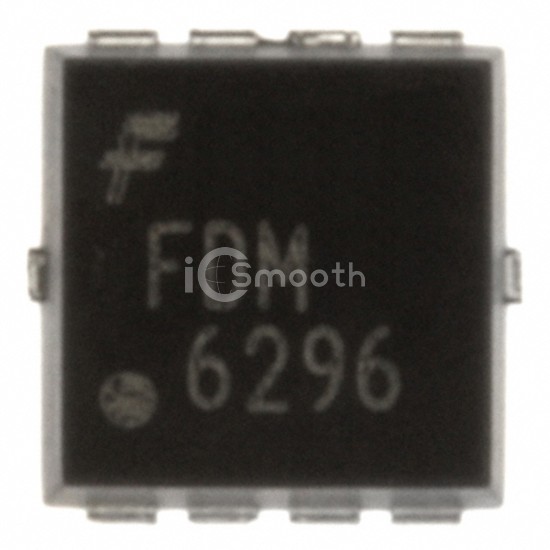

FDM6296

MOSFET N-CH 30V 11.5A 8POWER33

FDM6296 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 11.5A 8POWER33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 3,357

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	11.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10.5mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2005 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-Power33 (3x3)
Package / Case	8-PowerVDFN
