Name: FDI3632
Brand: onsemi
SKU: FDI3632
Availability: InStock

REF: FDI3632 onsemi

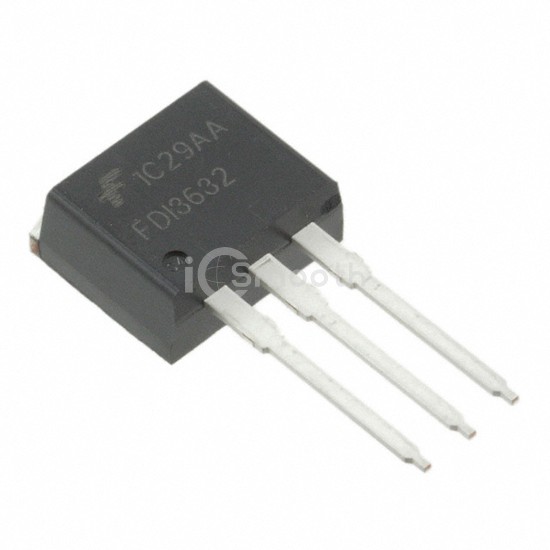

FDI3632

MOSFET N-CH 100V 12A/80A I2PAK

FDI3632 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 12A/80A I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 5,090

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	9mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	110 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	310W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK (TO-262)
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
