Name: FDI030N06
Brand: onsemi
SKU: FDI030N06
Price: 5.20 USD
Availability: InStock

REF: FDI030N06 onsemi

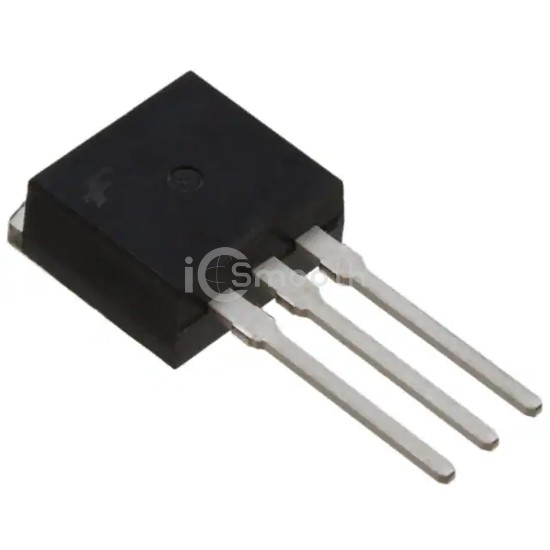

FDI030N06

MOSFET N-CH 60V 120A I2PAK

FDI030N06 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 120A I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 1,761

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	151 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9815 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	231W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK (TO-262)
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
