Name: FDG327N
Brand: onsemi
SKU: FDG327N
Availability: InStock

REF: FDG327N onsemi

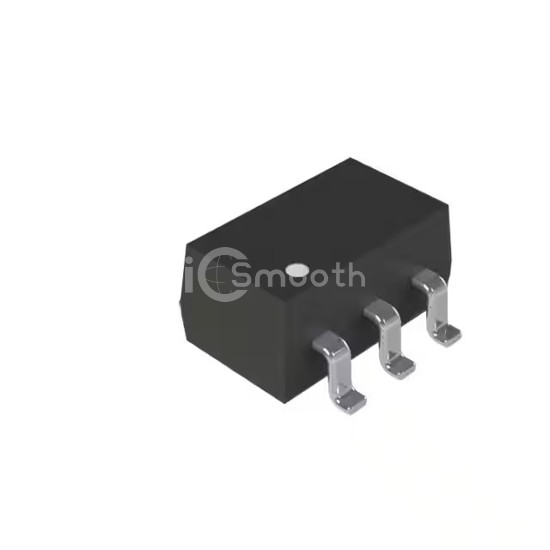

FDG327N

N-CHANNEL POWERTRENCH MOSFET, 20

FDG327N is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. N-CHANNEL POWERTRENCH MOSFET, 20. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 9,882

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	90mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.3 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	423 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	420mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-88 (SC-70-6)
Package / Case	6-TSSOP, SC-88, SOT-363
