Name: FDFMA2P029Z-F106
Brand: onsemi
SKU: FDFMA2P029Z-F106
Price: 0.50 USD
Availability: InStock

REF: FDFMA2P029Z-F106 onsemi

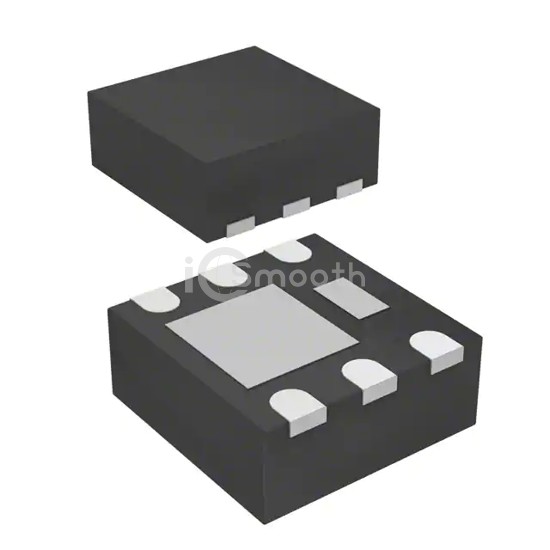

FDFMA2P029Z-F106

MOSFET P-CH 20V 3.1A 6MICROFET

FDFMA2P029Z-F106 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 3.1A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,294

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	95mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	720 pF @ 10 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-MicroFET (2x2)
Package / Case	6-VDFN Exposed Pad
