Name: FDFMA2N028Z
Brand: onsemi
SKU: FDFMA2N028Z
Price: 0.70 USD
Availability: InStock

REF: FDFMA2N028Z onsemi

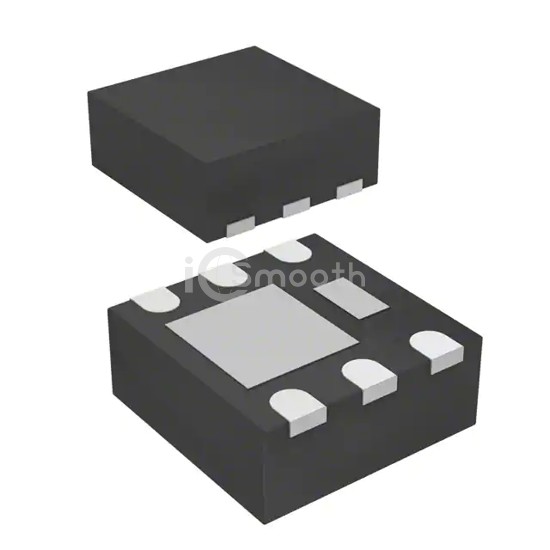

FDFMA2N028Z

MOSFET N-CH 20V 3.7A 6MICROFET

FDFMA2N028Z is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 3.7A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,465

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	68mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	455 pF @ 10 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.4W (Tj)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-MicroFET (2x2)
Package / Case	6-VDFN Exposed Pad
