Name: FDD9410L-F085
Brand: onsemi
SKU: FDD9410L-F085
Availability: InStock

REF: FDD9410L-F085 onsemi

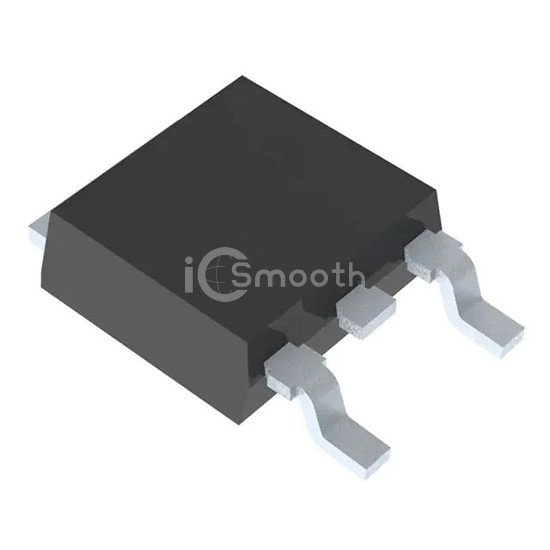

FDD9410L-F085

MOSFET N-CHANNEL 40V 50A TO252

FDD9410L-F085 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CHANNEL 40V 50A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 8,397

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.2mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1960 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	75W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252, (D-Pak)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
