Name: FDD8896-G
Brand: onsemi
SKU: FDD8896-G
Availability: InStock

REF: FDD8896-G onsemi

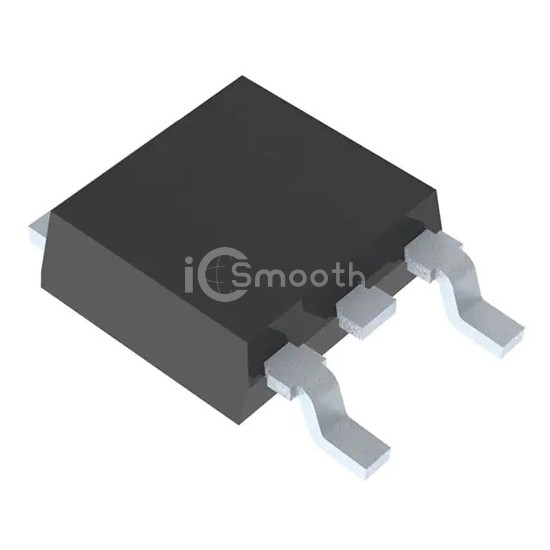

FDD8896-G

MOSFET N-CH 30V TO252AA

FDD8896-G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V TO252AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 6,217

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	17A (Ta), 94A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.7mOhm @ 35A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	60 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2525 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	80W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252AA
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
