Name: FDBL9406-F085T6
Brand: onsemi
SKU: FDBL9406-F085T6
Price: 6.04 USD
Availability: InStock

REF: FDBL9406-F085T6 onsemi

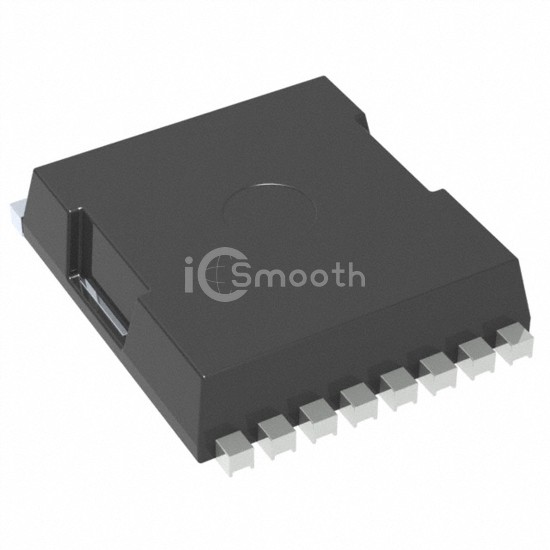

FDBL9406-F085T6

MOSFET N-CH 40V 45A/240A 8HPSOF

FDBL9406-F085T6 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 45A/240A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 7,890

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	45A (Ta), 240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	1.21mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.5V @ 190µA
Gate Charge (Qg) (Max) @ Vgs	75 nC @ 10 V

Vgs (Max)	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds	4960 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	4.3W (Ta), 136.4W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HPSOF
Package / Case	8-PowerSFN
