FDBL9403-F085

In Stock: 8,163

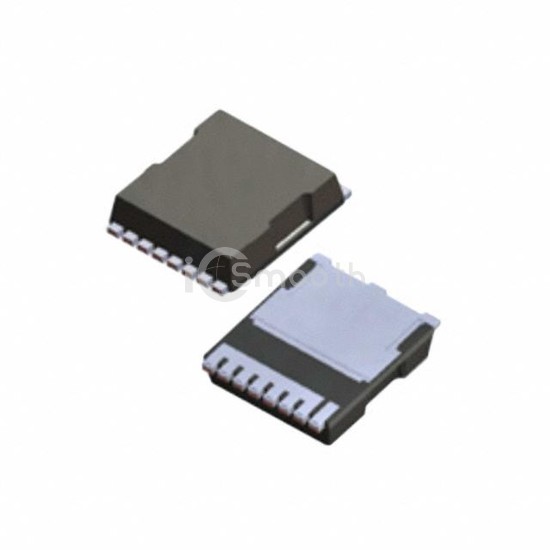

FDBL9403-F085 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDBL9403-F085 onsemi
FDBL9403-F085

onsemi

MOSFET N-CH 40V 240A 8HPSOF

FDBL9403-F085 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 240A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 8,163

Specifications

17 parameters
Product StatusLast Time Buy
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs0.9mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs188 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds12000 pF @ 25 V
FET Feature-
Power Dissipation (Max)357W (Tj)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HPSOF
Package / Case8-PowerSFN
