FDBL0260N100

In Stock: 3,685

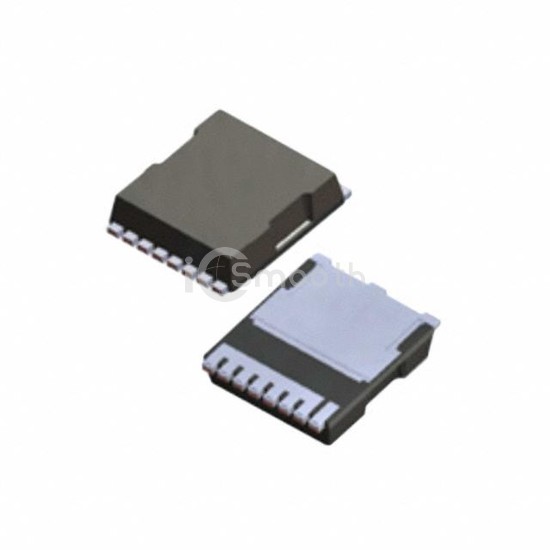

FDBL0260N100 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDBL0260N100 onsemi
FDBL0260N100

onsemi

MOSFET N-CH 100V 200A 8HPSOF

FDBL0260N100 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 200A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 3,685

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C200A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.6mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs116 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds9265 pF @ 50 V
FET Feature-
Power Dissipation (Max)3.5W (Ta), 250W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HPSOF
Package / Case8-PowerSFN
